Place of Origin: | Hangzhou, Zhejiang, China |
---|---|
Brand Name: | Peritek |
Certification: | ISO9001:2008 |
Model Number: | ZLK-D-1500 |
Minimum Order Quantity: | 1 SET |
Packaging Details: | Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases. |
Delivery Time: | Within 25 days after receipt of down payment. |
Payment Terms: | L/C,T/T |
Supply Ability: | 1000 Set/Sets per Month |
Material: | SUS 316 | Voltage: | 3PH,380V,50HZ |
---|---|---|---|
Warranty: | 1 Year | Color: | Picture |
Application: | Sewage Treatment Pump Station | ||
Highlight: | mini desiccant dehumidifier,stand alone dehumidifier |

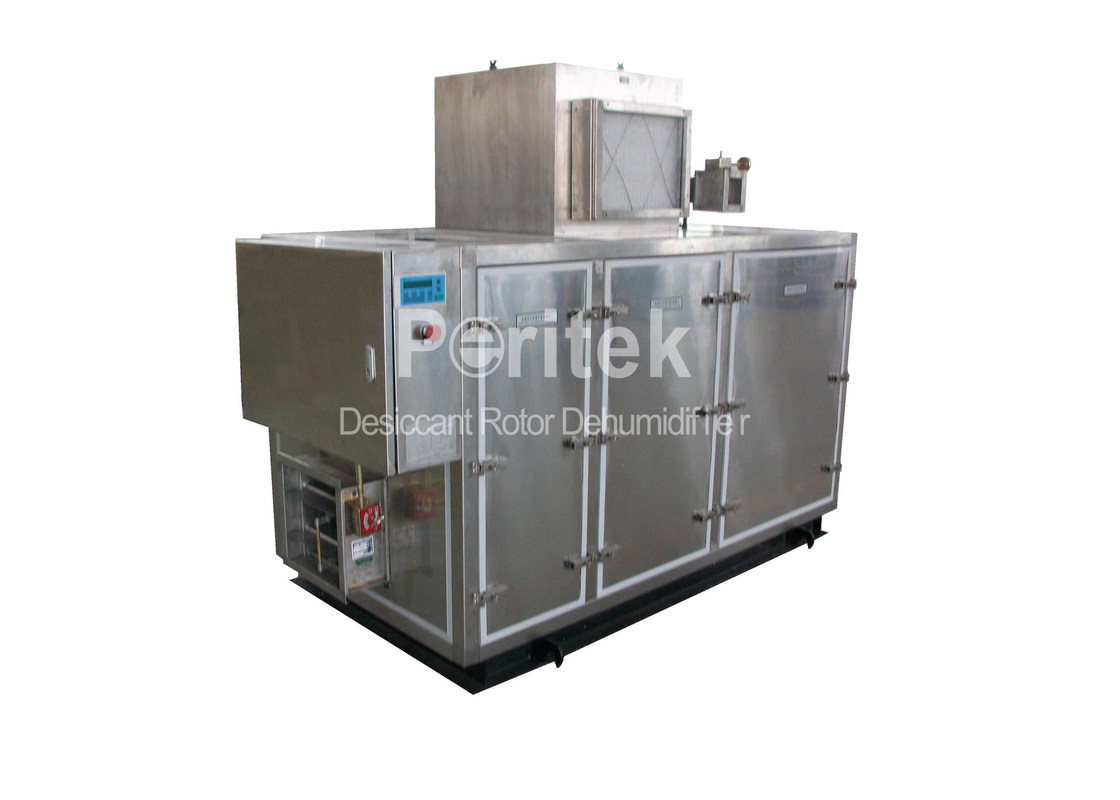

Industrial Air Desiccant Dehumidifier For Precision Instruments
Quick Detail:
Industrial Dehumidifier , Air Dehumidify Equipment , Industrial Ventilation Equipment
Description:
The Dehumidifier is specialized for normal temperature and low humidity process environment. Its major characteristics are as follow:
Main Parameters of ZL Series Dehumidifier
Main Parameters / Model |
ZLK-120 |
ZLK-600 |
ZLK-1000 |
ZLK-6000 |
|
Process Air |
Airflow m³/h |
120 |
600 |
1000 |
6000 |
Fan Power kW |
0.085 |
0.37 |
1.1 |
5.5 |
|
Reactivation Air |
Airflow m³/h |
40 |
200 |
330 |
2000 |
Fan Power kW |
0.085 |
0.25 |
0.37 |
1.5 |
|
Reactivation Mode |
Electrical Heating Power kW |
1.5 |
7.2 |
8.4 |
60 |
Steam Consumption kg/h |
/ |
/ |
14 |
100 |
|
Dehumidify Capacity |
20°C,70%,kg/h |
0.6 |
4.5 |
7.2 |
45.9 |
Drive Motor Power kW |
0.015 |
0.025 |
0.04 |
0.1 |
|
Installed Power |
Electrical Heating kW |
1.685 |
7.845 |
9.91 |
61.6 |
Steam Heating kW |
/ |
/ |
1.51 |
1.6 |
|
Overall Dimensions |
Length mm |
360 |
550 |
650 |
1800 |
Width mm |
340 |
550 |
650 |
1300 |
|
Height mm |
800 |
1350 |
1750 |
2080 |
|
Weight kg |
35 |
95 |
120 |
700 |
Note:1. Air flow above 4000 without process fan, users can select.
2. If regeneration heating type select steam, P=0.4MPa.
3. Larger airflow dehumidifiers can be customized.
Competitive Advantage:
Typical Application Fields:
1. Warehouse, Library and Archives:
In low humidity environment, the goods, books and files will not be damaged for a long time.
2. Pharmaceutical Industry:
Widely used in processes need to control humidity in parametrical industries, for example, soft gelatin capsule, fluidized bed, tablet press, coating machine, tumble dryer, tray dryer and so on.
3. Electronics Industry, Lithium Battery
It is widely used for precision instrument manufacture such as electronic components, astronavigation component, lithium battery etc which needs strict control of moisture.
4. Chemical Fiber Industry:
Used with chiller, it can make the dew point below -40℃ to meet the drying environment for PET chip in the chemical fibre factory.
5. Food Processing Industry:
Used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube
sugar store,flour processing, fermentation, drying and other processes.
6. Space and Aviation:
7. Glass Lamination
8. Ship Coating
9. Bridge Anticorrosion
10. Rubber Tire
11. Nuclear power plants
12. Printing
Work Principle:
The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel.
The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of
the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air
comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet
the need of dry place or gas production process.
