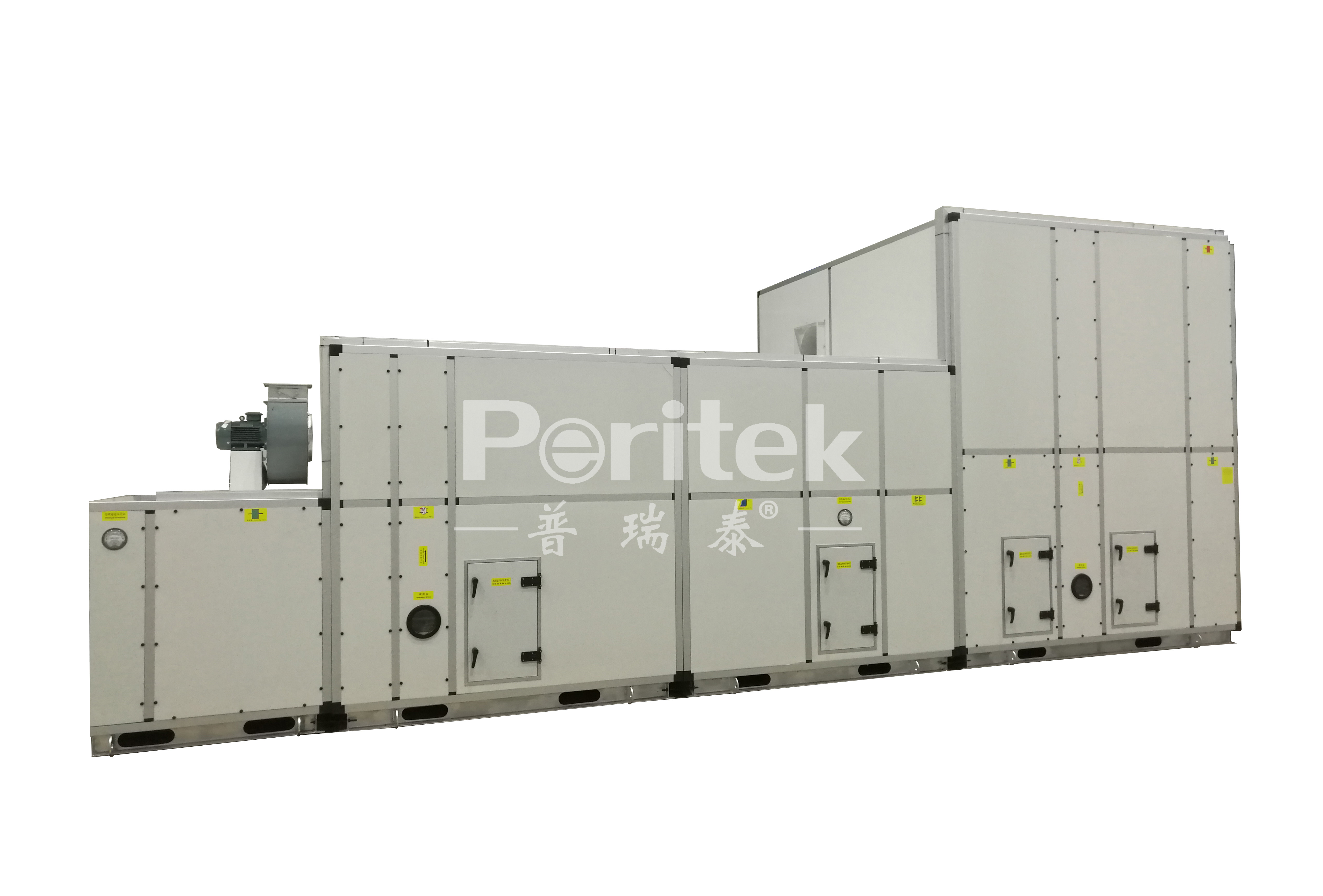

24000CMH Industrial Desiccant Wheel Dehumidifier Systems

Basic Information
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: Peritek
Certification: ISO9001:2008
Model Number: ZLB-D-14000
Minimum Order Quantity: 1 SET
Price: USD$ 10,000/ set
Packaging Details: Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases.
Delivery Time: Within 35 days after receipt of down payment.
Payment Terms: L/C,T/T
Supply Ability: 50 Set/Sets per Month
Packaging Details:: Wooden Cases,a Kind Of Standard Package For Export.We Could Also Make Special Package According To Your Demand. Delivery Detail:: 30 Days
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Voltage: 220V/380V/50HZ
Condition: New Weight: 1500KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Color: Blue Or White
Air Volume: 1500-24000CMH Type: Desiccant Dehumidifier
Work Temperature: -20℃-40℃ Certification: CE
Warranty: 1 Year Noise Level:: Below 46 DB
High Light:

desiccant wheel dehumidifier systems


24000CMH industrial desiccant dehumidifier


industrial desiccant wheel dehumidifier

Desiccant dehumidifiers are especially well-suited for removing moisture from air at a low temperature and low humidity level. At the heart of these dehumidifiers is a patented desiccant wheel made up of corrugated material. Air passes through the flutes of the material, contacting the desiccant.
Quick Detail:

1. Process airflow 120CMH

2. Rated Humidity removal 1 kg/h.

3. Working temperature -20~+40℃

4. Suitable for low temperature and RH process.

5. Could be usded together with air conditioner.

6. Start with domestic first rotor dehumidifier,

7. With 30 years professional theoretical and practical experience in dehumidifier field

8. Draw up the national military standard and industry standard of dehumidification equipment

9. Silica gel desiccant wheel from Sweden.


What does a commercial dehumidifier do?

Commercial and industrial dehumidifiers will reduce mold, condensation dripping from pipes or windows, and eliminate musty smells. Just like with residential dehumidifiers it's important to know the size of the space you are trying to remove moisture from. This will help you choose the best unit for your needs.


What is an industrial dehumidifier?

Industrial refrigerated dehumidifiers operate by using accepted refrigeration practices to lower the dew point of the facility's incoming air. ... The moisture from the air condenses on cold evaporator coil fins into droplets as the water in the air reaches its dew point.


How long does a commercial dehumidifier last?

3-5 Years

How long does a dehumidifier last when used every day? Dehumidifier would last 3-5 Years when used and maintained appropriately. Dehumidifiers are simple machines that are able to reduce the moisture content of any atmosphere it is placed in


Should I get a 50 or 70 pint dehumidifier?

Larger dehumidifiers use more energy while they are operating but are more energy efficient. A 70 pint Frigidaire for example removes 12.5% more water per kilowatt hour of electricity consumed than a 50 Pint Frigidaire.

How do I choose a dehumidifier?

Other factors can influence the humidity of the room, so consider the following when sizing a dehumidifier:

If your home is in a humid climate, add 10 pints to the recommended capacity.

If multiple people live or spend time in the room, add 5 pints.

If the room has multiple windows or doors, add 5 pints.



Desiccant Dehumidifier offers extreme moisture extraction in a compact, rugged, and lightweight package. As part of Series of desiccant dehumidifiers, this model is ideal for reducing humidity in industrial areas in order to prevent corrosion, mold growth, and condensation as well as to maintain low-humidity conditions every day.


Use in Cool Temperatures

desiccant dehumidifiers are exceptional performers in cooler climates or when a low dew point, deep drying, or low humidity levels are required. The removes up to 231 pints of moisture per day at in AHAM conditions and operates successfully in temperatures as low as -4 degrees F.

The Dehumidifier is specialized for normal temperature and low humidity process environment. Its major characteristics are as follow:
1. Main components: pre-filter, desiccant rotor, process fan, electric controller and cabinet.
2. The cabinet is made of aluminum alloy, and double insulation panel structure with high density polyurethane insulation material inside, strong, compact, anti-corrosion, and it is anti-“cold bridge” which can help avoid condensating.
3. The dehumidifier select silica gel desiccant wheel from Sweden.
4. Select centrifugal fan, its impeller and vent was plated with anti-corrosion coating, it’s strong and anti-corrosion.
5. G4 rough effect air filters to assure air purity.
6. Use text display, temperature and humidity probe to control temperature and humidity. It is convenient to operate.

Main Parameters of ZLB Series Dehumidifier

Main Parameters/Model ZLB
Proecess Air Rated Airflow(m3/h) 10000
Process ESP(Pa) 500
Reactivation Air Rated Airflow(m3/h) 3330
Process ESP(Pa) 200
Reactivation  Mode Electric, Max Power (kW) /
Steam Pressure (Mpa)   /
Steam, Steam Consumption(kg/h) /
Dehumidifying Capacity (20°C,70%) (kg/h) /
Drive Motor Motor Power (kW) 0.1
 Installed Power (kW) Electric Heating Mode  /
Steam Heating Mode  /
Overall Dimensions
Length /
Width /
Height /
Approx. Weight (kg) 1300

Note:1. Air flow above 4000 without process fan, users can select.
2. If regeneration heating type select steam, P=0.35~0.45MPa.
3. Larger airflow dehumidifiers can be customized.
Competitive Advantage:
1. Peritek dehumidifiers are manufactured based on more than 30 years of research and development. Have been used in space suit specific cell production and become the most advanced satellite transmission tower supporting equipment.
2. Peritek dehumidifiers with R-DD optimal design, compared with the general dehumidifier, can save energy more than 35%, and above 10% with heat exchanger dehumidifiers.
3. Dehumidification ability of Peritek dehumidifiers is great. Under normal use, after closing down for 10 hours, system can restart and reach the technical target in 30 to 60 minutes.
4. We can provide users domestic initiative remote communication interface according to your requirements, and the remote computer operation and management system networking, superior to realize remote service.
5. Peritek dehumidifiers adopt steel structure with plastic-sprayed surface (Peritek self-owned patent, patent number: ZL 2008 0163177.3 2).
Work Principle:
The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel. The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet the need of dry place or gas production process.
24000CMH Industrial Desiccant Wheel Dehumidifier Systems 0


Typical Application Fields:
1. Warehouse, Library and Archives:
In low humidity environment, the goods, books and files will not be damaged for a long time.
2. Pharmaceutical Industry:
Widely used in processes need to control humidity in parametrical industries, for example, soft gelatin capsule, fluidized bed, tablet press, coating machine, tumble dryer, tray dryer and so on.
3. Electronics Industry, Lithium Battery
It is widely used for precision instrument manufacture such as electronic components, astronavigation component, lithium battery etc which needs strict control of moisture.
4. Chemical Fiber Industry:
Used with chiller, it can make the dew point below -40℃ to meet the drying environment for PET chip in the chemical fibre factory.
5. Food Processing Industry:
Used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube
sugar store,flour processing, fermentation, drying and other processes.
6. Space and Aviation:
7. Glass Lamination
8. Ship Coating
9. Bridge Anticorrosion
10. Rubber Tire
11. Nuclear power plants
12. Printing
