|Place of Origin:||Hangzhou, Zhejiang, China|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases.|
|Delivery Time:||Within 30 days after receipt of down payment.|
|Supply Ability:||1000 Set/Sets per Month|

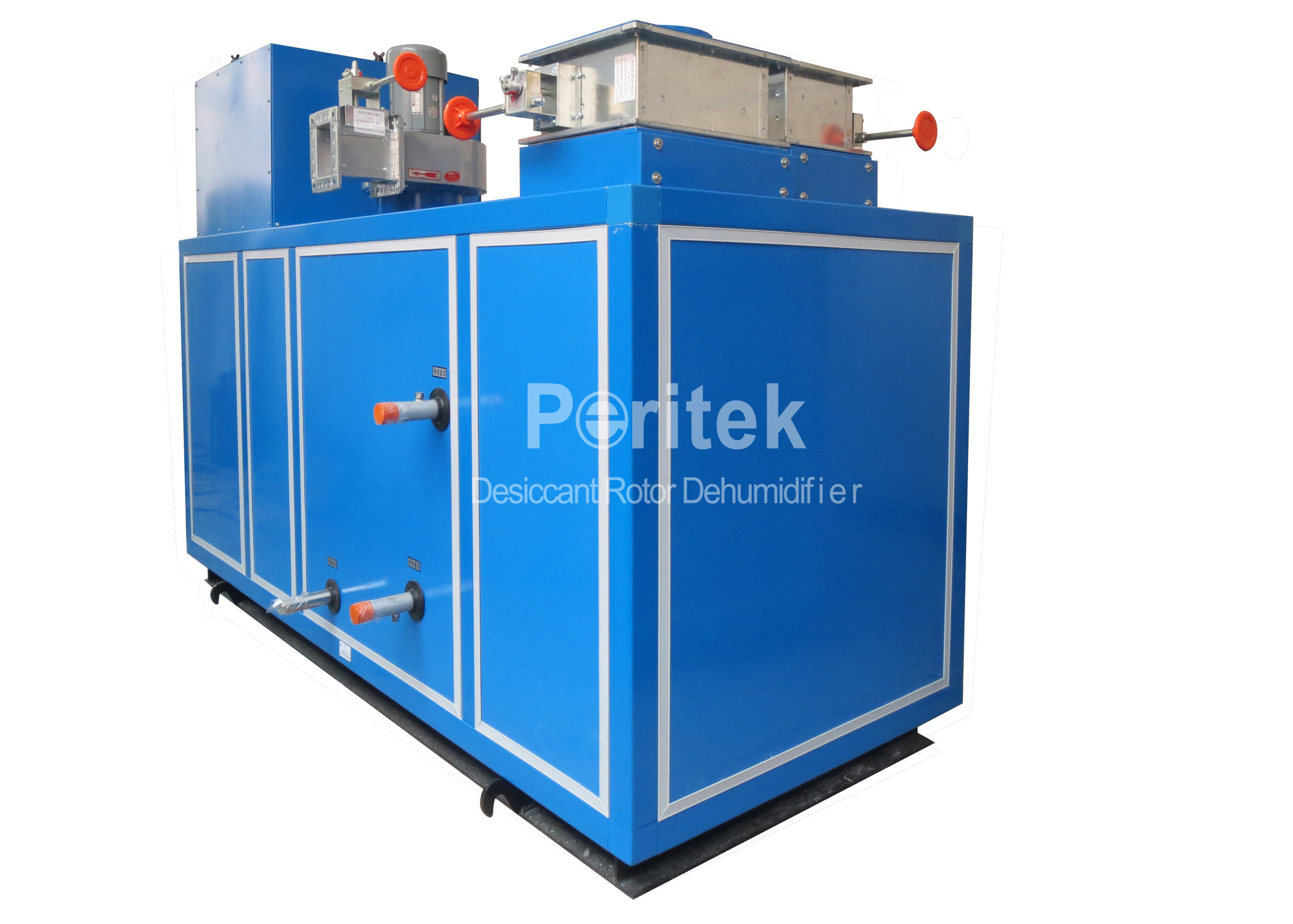

Low Humidity Blowing Molding Rotary Desiccant Dehumidifier For Warehouse
1. The dehumidifier has the function of de-bacteria.
2. It is specially suitable for heat sensitive food production, such as milk powder, animal glue, granulated sugar etc, which needs normal temperature and low moisture.
3. Widly used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube sugar store,flour processing, fermentation, drying and other processes.
Except the desiccant wheel, ZLB series low humidity dehumidifier also equipped with pre and after cooling coils. It process with and dehumidify normal temperature air, it is specialized dehumidifier for normal temperature and low humidity process environment. As follow are their major characteristics:
ZLB: low humidity dehumidifier units basic code
D: Rotary regeneration type. D for Electricity, Z for Steam.
1000: Process airflow m3/h
Main Parameters of ZLB Series Dehumidifier:
|Main Parameters / Model||ZLB-1500|
|Process Air||Airflow m³/h||1500|
|Fan Power kW||1.1|
|Regeneration Air||Airflow m³/h||500|
|Fan Power kW||0.37|
|Regeneration Mode||Electrical Heating Power kW||14.4|
|Steam Consumption kg/h||24|
|Outlet Air||Temperature °C||22±2|
|Relative Humidity %||≤20|
|Drive Motor Power kW||0.06|
|Installed Power||Electrical Heating kW||15.93|
|Steam Heating kW||1.53|
|Overall Dimensions||Length mm||5000|
|Supporting System Refrigerating Capacity kW||15.0|
|Frozen Water Consumption t/h||2.6|
1. Parameter of fresh air: 35°C, 80%
2. The ratio of fresh air is 5% of air output.
3. Output air excess pressure ≥200Pa
4. Supporting system refrigerating capacity and frozen water consumption, you only need to choose one.
The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel. The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet the need of dry place or gas production process
Typical Application Fields:
Output temperature is below 18 degree, dew point td is below -8 degree. Be used for mixing workshop, coating workshop, production workshop, assembling workshop, etc, enable environmental index of these workshops to achieve 20-24degree, RH below 20%.
1. Warehouse, Library and Archives:
2. Pharmaceutical Industry:
3. Electronics Industry, Lithium Battery
4. Chemical Fiber Industry:
5. Food Processing Industry:
6. Space and Aviation:
7. Glass Lamination
8. Ship Coating
9. Bridge Anticorrosion
10. Rubber Tire
11. Nuclear power plants
