Lithium Battery Industrial Dehumidification Systems Anti Corrosion Airflow 360m³/h

Basic Information
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: Peritek
Certification: ISO9001:2008
Model Number: ZHD-360
Minimum Order Quantity: 1 SET
Packaging Details: Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases.
Delivery Time: Within 30 days after receipt of down payment.
Payment Terms: L/C,T/T
Supply Ability: 500 Set/Sets per Month
High Light:

commercial dehumidification systems

,

industrial food dryer

Lithium Battery Industrial Dehumidification Systems Anti Corrosion Airflow 360m³/h



Quick Detail:



Tablet Production Desiccant System , Lithium Battery Industry Dehumidifier

1. Output temperature ≤16℃, dew point td≤-8℃.

2. Be used for mixing workshop, coating workshop, production workshop, assembling workshop, etc,enable environmental index of these workshops to achieve 22±2℃, RH≤20%.

3. Ultra-low humidity drying room is the key facility of lithium electricity environment system. It is different from the general clean rooms and other color plate houses.

4. Its key indicators are tightness and stiffness. When air inlet and outlet turnoff, the time pressure changing from 200Pa to100Pa should be more than 10 minutes; under 200Pa positive pressure, drying room is nondeformed, Fire performance is good, Reasonable structure, and can meet requirements of all sorts of functions in the lithium electricity production.

5. The ground should use materials with good hardness, wear resistance, humidity resistance. The brightness inside the room is more than 250Lax, and with transition room for sealing.

6. The ground should use materials with good hardness, wear resistance, humidity resistance. The brightness inside the room is more than 250Lax, and with transition room for sealing.





Character:



Model Example:

ZHL-D-2000

ZHL: Ultra-low low humidity dehumidifier units basic code

D: Rotary regeneration type. D for Electricity, Z for Steam.

2000: Process airflow m3/h



Main Parameters of Glove Box Dedicated Dehumidifier:

Main Parameters /  Model

ZHD-180

ZHD-360

ZHD-500

ZHD-1000

ZHD-1500

Process Air

Airflow m³/h

180

360

500

1000

1500

Fan Power kW

0.74

1.12

1.12

1.65

2.25

Regeneration Fan Power kW

0.18

0.18

0.18

0.18

0.25

Regeneration Electrical Heating Power kW

1.8

3.0

3.6

7.2

10.8

Attemperation Electrical Heating Power kW

0.6

0.6

1.2

1.8

3.0

Drive Motor Power kW

0.03

0.04

0.04

0.06

0.09

Installed Power kW

3.35

4.94

6.14

10.89

16.39

Supporting System Refrigerating Capacity kW

2.5

4.9

6.9

13.7

20.6

Overall Dimensions

Length  mm

1900

1900

2100

2300

2300

Width  mm

780

780

1030

1180

1180

Height  mm

1500

1500

1650

1800

1800

Weight kg

200

250

300

400

500

Station

6~8

12~16

16~22

24~36

32~44

Note:

Depending on the system configuration can make the dew point temperature glove box of ≤-40 ~-5



Competitive Advantage:

  1. Peritek dehumidifiers are manufactured based on more than 30 years of research and development. Have been used in space suit specific cell production and become the most advanced satellite transmission tower supporting equipment.
  2. Peritek dehumidifiers with R-DD optimal design, compared with the general dehumidifier, can save energy more than 35%, and above 10% with heat exchanger dehumidifiers.
  3. Dehumidification ability of Peritek dehumidifiers is great. Under normal use, after closing down for 10 hours, system can restart and reach the technical target in 30 to 60 minutes.
  4. We can provide users domestic initiative remote communication interface according to your requirements, and the remote computer operation and management system networking, superior to realize remote service.
  5. Peritek dehumidifiers adopt steel structure with plastic-sprayed surface (Peritek self-owned patent, patent number: ZL 2008 0163177.3 2).





Typical Application Fields:

1.  Warehouse, Library and Archives:

2.  Pharmaceutical Industry:

3.  Electronics Industry, Lithium Battery

4.  Chemical Fiber Industry:

5.  Food Processing Industry:

6.  Space and Aviation:

7. Glass Lamination

8. Ship Coating

9. Bridge Anticorrosion

10. Rubber Tire

11. Nuclear power plants

12. Printing

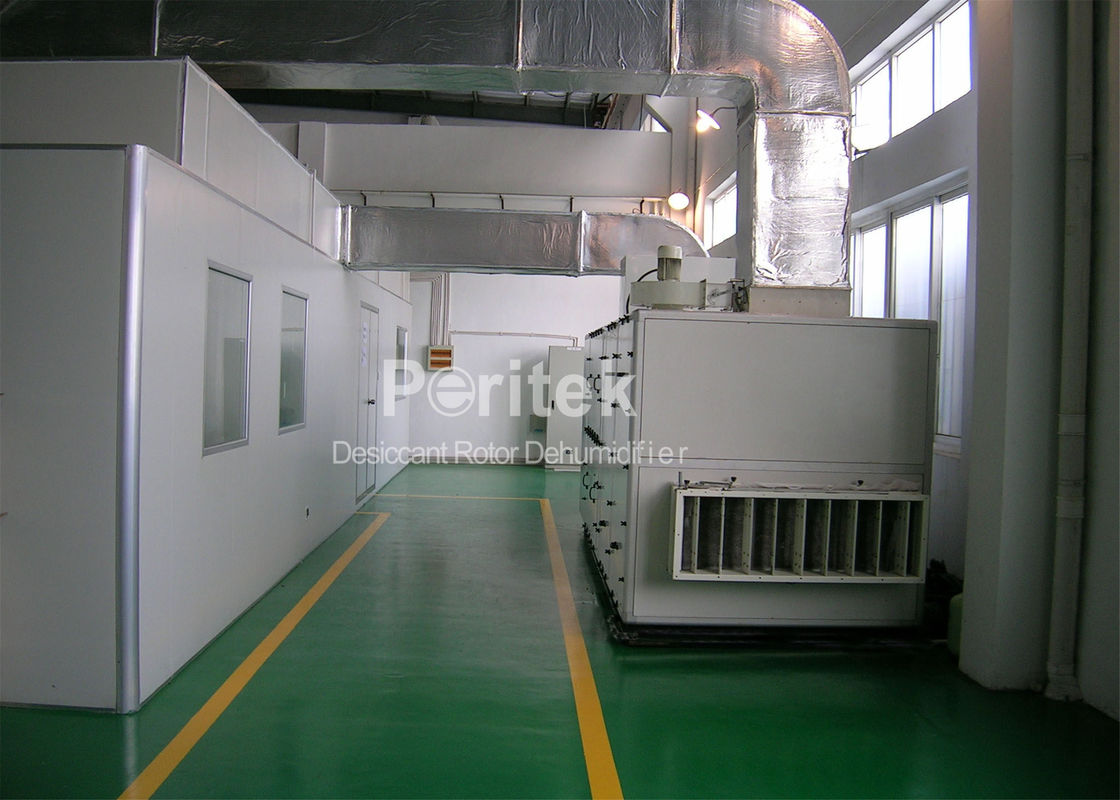

Lithium Battery Industrial Dehumidification Systems Anti Corrosion Airflow 360m³/h 0





Work Principle:

Device is a combined type, which has functions of air filtering, cooling dehumidification, rotor dehumidification, air supply and temperature adjustment, etc.When fresh air go through the filter ,enter into and contact fully with the surface cooler, due to the surface  temperature below the air dew point temperature, air cooled,at the same time, the included water turning into condensed water separated out, then the air temperature and humidity decrease, the low temperature and humidity air mixing return air of the drying room, after tempering by return air surface cooler ,enter into the desiccant rotor for further     dehumidification. At last, after tempering, we get the dry air, which is sent to dry room to meet the technological requirements

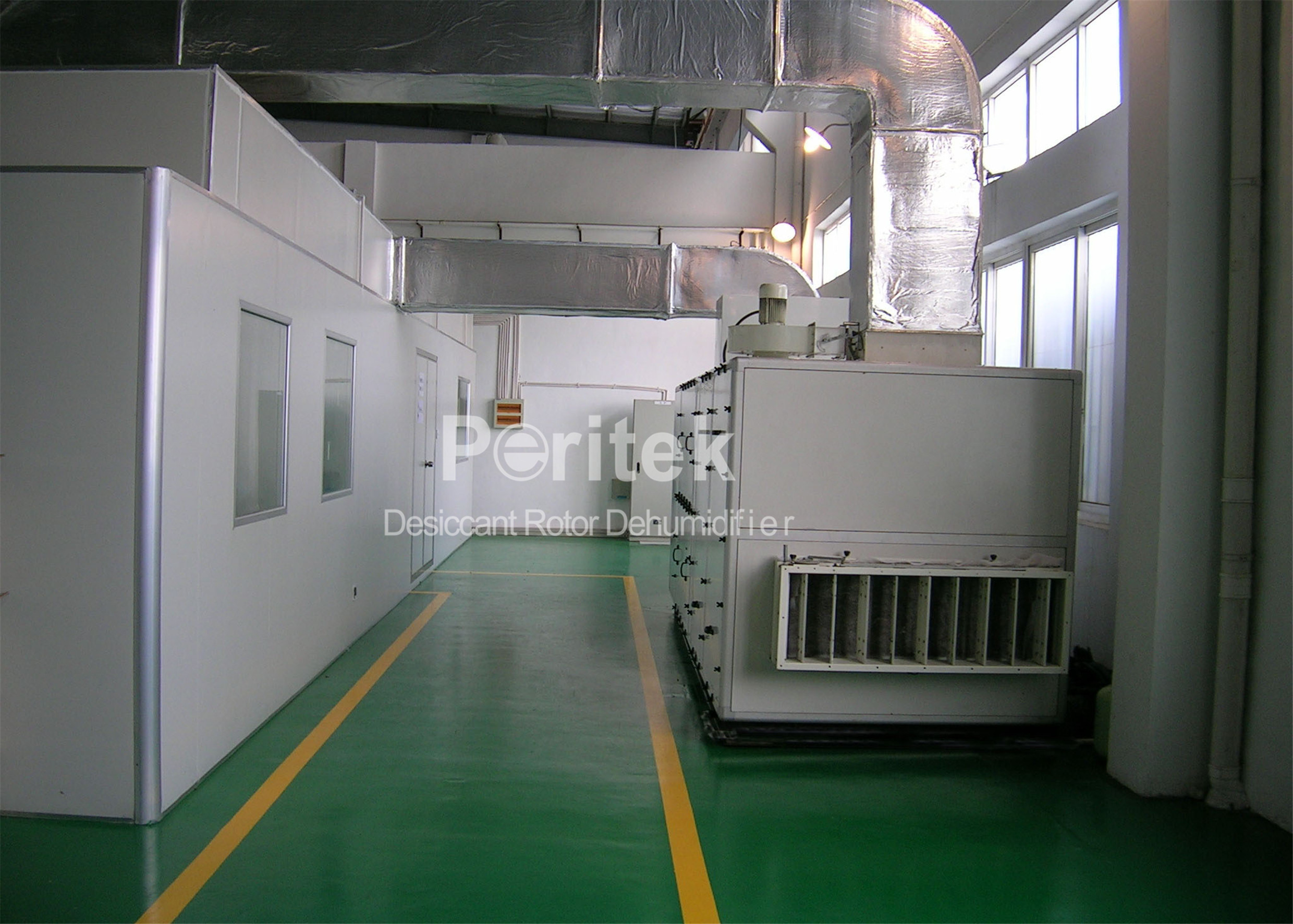

Lithium Battery Industrial Dehumidification Systems Anti Corrosion Airflow 360m³/h 1
