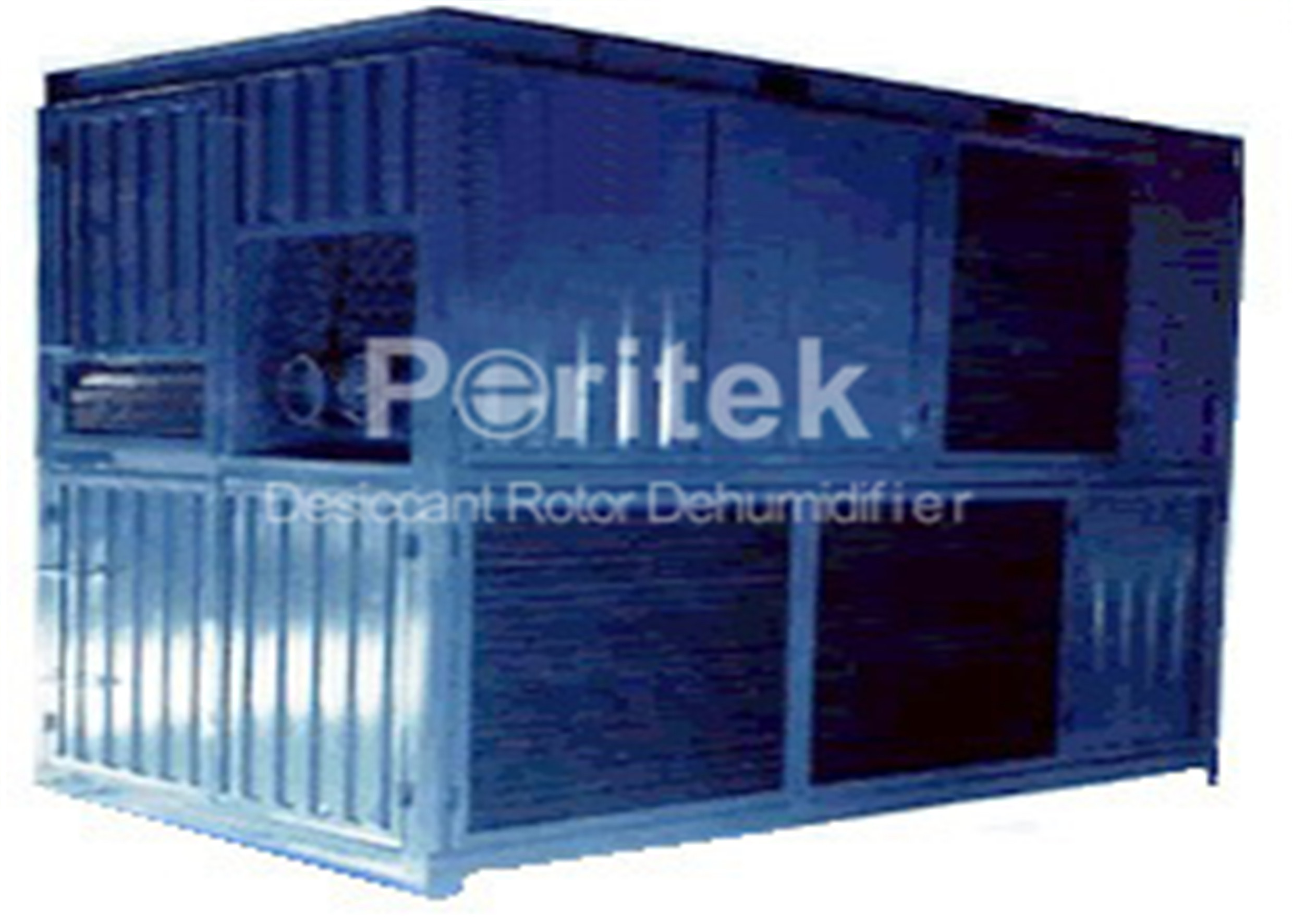

Portable Heavy Duty Dehumidifier Large Airflow 3000m³/h for Electricity

Basic Information
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: Peritek
Certification: ISO9001:2008
Model Number: ZLLY-D-6000
Minimum Order Quantity: 1 SET
Packaging Details: Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases.
Delivery Time: Within 25 days after receipt of down payment.
Payment Terms: L/C,T/T
Supply Ability: 1000 Set/Sets per Month
High Light:

Industrial Dehumidification Systems

,

Mobile Dehumidifier

Portable Heavy Duty Dehumidifier Large Airflow 3000m³/h for Electricity





Quick Detail:

  1. High moisture removal.
  2. Suitable for low temperature and RH process.
  3. Could be usded together with air conditioner.
  4. Start with domestic first rotor dehumidifier,
  5. With 30 years professional theoretical and practical experience in dehumidifier field
  6. Draw up the national military standard and industry standard of dehumidification equipment



Description:

Except the desiccant wheel, ZLB series low humidity dehumidifier also equipped with pre and after cooling coils. It process with and dehumidify normal temperature air, it is specialized dehumidifier for normal temperature and low humidity process environment. As follow are their major characteristics:

  1. Main components: desiccant wheel, reactivation fan, reactivation heater, reactivation filter, , pre-cooling, post-cooling,heating coil,pre-filter ,medium filter and HEPA and cabinet.
  2. The cabinet is made of aluminum alloy, it is strong, compact, anti-corrosion, and it is anti-“cold bridge” which can help avoid condensation.
  3. The cabinet is double insulation panel structure with high density polyurethane insulation material inside(The inner plate of HEPA select 304Stainless wire drawing board), it is insulation, anti-corrosion, sound proof, fire proof and strong.
  4. The dehumidifier select PROFLUTE silica gel desiccant wheel from Sweden.
  5. Select SHANGHAI GENERAL centrifugal fan, its impeller and vent was plated with anti-corrosion coating, it’s strong and anti-corrosion. Select three-phase asynchronous motor, imported bearing, and level IP55 protection and level F insulation.
  6. Cooling coils select copper pipe and hydrophilic membrane corrugated aluminum fins, thickness of the copper pipe no less than 0.5 mm. Copper pipe thickness of heater no less than 0.75 mm, heating by vapor.
  7. G4 pre- filter, F8 medium effect air filter and H13 high grade filter to assure the air purity.
  8. Use control instrument,and humidity probe to control temperature and humidity. It is convenient to operate.
  9. Functions of electric controller:Parameter setting, operating status displaying and controlling, historical datarecording, wheel stop switch alarm, temperature and humidity limit alarm, reprocessing temperature limit alarm, filter clogging alarm, multi protection for temperature limit and over current and unbalance of phase.It can add proportional control valve for reprocess heating and former and latter surface cooler. To improve dehumidifier efficiency by optimizing function of each components.
  10. Main electrical components are Siemens, Siemens enjoy high high reputation for good quality, reliable operation.



Character

  1. Intake air filter, silica gel desiccant wheel, double cold-water heat exchanger;
  2. Chain drive;
  3. Electric heating by stainless steel tube, or by copper tube aluminum fin;
  4. Efficient centrifugal fans, aluminum alloy frame, high pressure polyurethane and double foam layer cabinet, anti-cold bridge, electric multi-protection operation;
  5. Reliable PLC control system.



Model Example

ZLB-D-1000

ZLB: low humidity dehumidifier units basic code

D: Rotary regeneration type. D for Electricity, Z for Steam.

1000: Process airflow m3/h



Main Parameters of ZLB Series Dehumidifier

Main Parameters /  Model

ZLB-1000

ZLB-5000

ZLB-10000

ZLB-30000

Process Air

Airflow m³/h

1000

 5000

10000

30000

Fan Power kW

1.1

4.0

7.5

22.0

Reactivation Air

Airflow m³/h

340

1650

3450

10000

Fan Power kW

0.25

1.5

3.0

11.0

Reactivation  Mode

Electrical Heating Power kW

8.4

36

84

240

Steam Consumption kg/h

14

60

140

400

Outlet Air

Temperature °C

22±2

Relative Humidity %

≤20

Drive Motor Power kW

0.06

0.12

0.16

0.25

Installed Power

Electrical Heating  kW

9.81

41.62

94.68

369.3

Steam Heating kW

1.41

5.62

10.68

33.25

Overall Dimensions

Length  mm

5000

5700

6000

7200

Width  mm

800

1230

1630

2460

Height  mm

1800

2300

2650

3600

Weight kg

1200

1800

2400

4000

Supporting System Refrigerating Capacity kW

10.0

49.9

99.8

299.5

Frozen Water Consumption t/h

1.7

8.6

17.2

51.5



1. Parameter of fresh air: 35°C, 80%

2. The ratio of fresh air is 5% of air output.

3. Output air excess pressure ≥200Pa

4. Supporting system refrigerating capacity and frozen water consumption, you only need to choose one.





Competitive Advantage:

  1. Peritek dehumidifiers are manufactured based on more than 30 years of research and development. Have been used in space suit specific cell production and become the most advanced satellite transmission tower supporting equipment.
  2. Peritek dehumidifiers with R-DD optimal design, compared with the general dehumidifier, can save energy more than 35%, and above 10% with heat exchanger dehumidifiers.
  3. Dehumidification ability of Peritek dehumidifiers is great. Under normal use, after closing down for 10 hours, system can restart and reach the technical target in 30 to 60 minutes.
  4. We can provide users domestic initiative remote communication interface according to your requirements, and the remote computer operation and management system networking, superior to realize remote service.
  5. Peritek dehumidifiers adopt steel structure with plastic-sprayed surface (Peritek self-owned patent, patent number: ZL 2008 0163177.3 2).



Typical Application Fields:

Output temperature is below 18 degree, dew point td is below -8 degree. Be used for mixing workshop, coating workshop, production workshop, assembling workshop, etc, enable environmental index of these workshops to achieve 20-24degree, RH below 20%.



1.  Warehouse, Library and Archives:

2.  Pharmaceutical Industry:

3.  Electronics Industry, Lithium Battery

4.  Chemical Fiber Industry:

5.  Food Processing Industry:

6.  Space and Aviation:

7. Glass Lamination

8. Ship Coating

9. Bridge Anticorrosion

10. Rubber Tire

11. Nuclear power plants

12. Printing

Portable Heavy Duty Dehumidifier Large Airflow 3000m³/h for Electricity 0



Portable Heavy Duty Dehumidifier Large Airflow 3000m³/h for Electricity 1



Work Principle:

The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel. The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet the need of dry place or gas production process


Portable Heavy Duty Dehumidifier Large Airflow 3000m³/h for Electricity 2
