Modular Desiccant Dehumidifier For Plastic Bottles Blow Molding

Basic Information
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: Peritek
Certification: ISO9001:2008
Model Number: ZLK-D-2000
Minimum Order Quantity: 1 SET
Packaging Details: Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases.
Delivery Time: Within 25 days after receipt of down payment.
Payment Terms: L/C,T/T
Supply Ability: 1000 Set/Sets per Month
Warranty:: 1 Year Color: White
Packaging Details:: Wooden Cases,a Kind Of Standard Package For Export.We Could Also Make Special Package According To Your Demand. Delivery Detail:: 20~30 Days
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Voltage:: 220/380/400v
High Light:

liquid desiccant dehumidification

,

stand alone dehumidifier

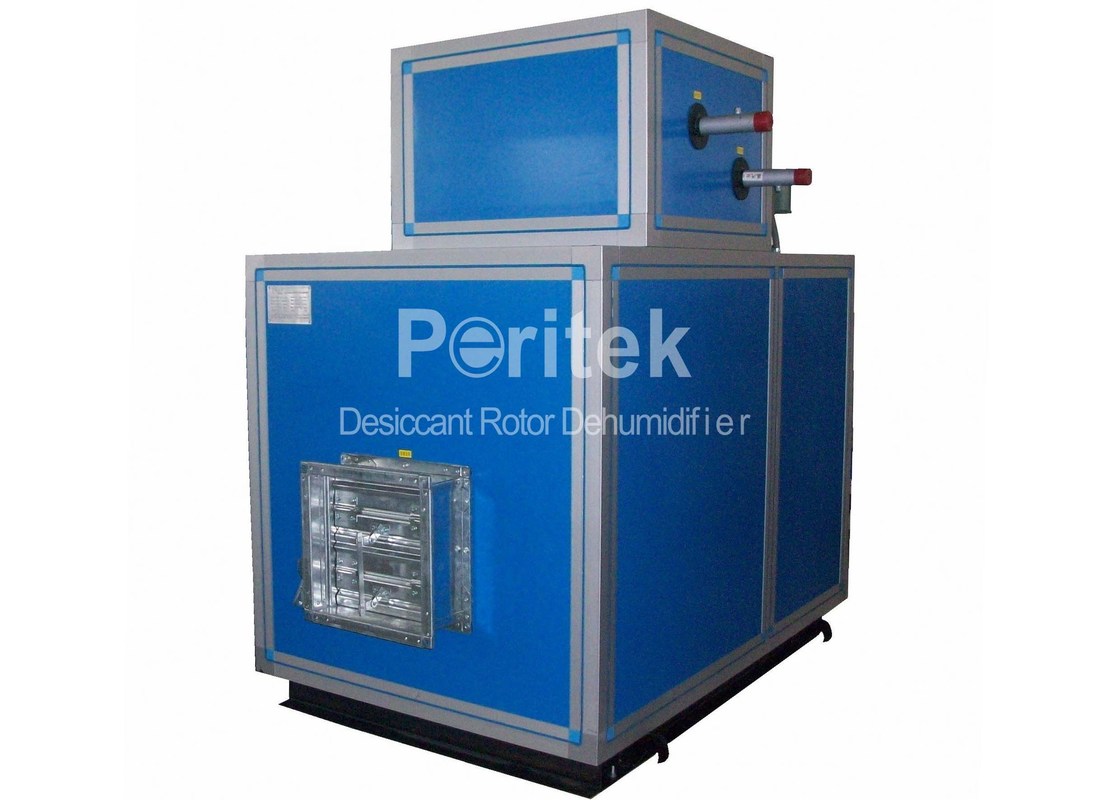

Modular Desiccant Dehumidifier For Plastic Bottles Blow Molding





Quick Detail:



  1. High moisture removal.
  2. Suitable for low temperature and RH process.
  3. Could be usded together with air conditioner.
  4. Start with domestic first rotor dehumidifier,
  5. With 30 years professional theoretical and practical experience in dehumidifier field
  6. Draw up the  national military standard and industry standard of dehumidification equipment





Description:



The Dehumidifier is specialized for normal temperature and low humidity process environment. Its major characteristics are as follow:

  1. Main components: pre-filter, desiccant rotor, process fan, electric controller and cabinet.
  2. The cabinet is made of aluminum alloy, and double insulation panel structure with high density polyurethane insulation material inside, strong, compact, anti-corrosion, and it is anti-“cold bridge” which can help avoid condensating.
  3. The dehumidifier select PROFLUTE silica gel desiccant wheel from Sweden.
  4. Select centrifugal fan, its impeller and vent was plated with anti-corrosion coating, it’s strong and anti-corrosion.
  5. G4 rough effect air filters to assure air purity.
  6. Use text display, temperature and humidity probe to control temperature and humidity. It is convenient to operate.





Main Parameters of ZL Series Dehumidifier



Main Parameters /  Model

ZLK-120

ZLK-600

ZLK-1000

ZLK-6000

Process Air

Airflow m³/h

120

600

1000

6000

Fan Power kW

0.085

0.37

1.1

5.5

Reactivation Air

Airflow m³/h

40

200

330

2000

Fan Power kW

0.085

0.25

0.37

1.5

Reactivation Mode

Electrical Heating Power kW

1.5

7.2

8.4

60

Steam Consumption kg/h

/

/

14

100

Dehumidify Capacity

20°C,70%,kg/h

0.6

4.5

7.2

45.9

Drive Motor Power kW

0.015

0.025

0.04

0.1

Installed Power

Electrical Heating  kW

1.685

7.845

9.91

61.6

Steam Heating kW

/

/

1.51

1.6

Overall Dimensions

Length  mm

360

550

650

1800

Width  mm

340

550

650

1300

Height  mm

800

1350

1750

2080

Weight kg

35

95

120

700



Note:1. Air flow above 4000 without process fan, users can select.

2. If regeneration heating type select steam, P=0.4MPa.

3. Larger airflow dehumidifiers can be customized.





Competitive Advantage:



  1. Peritek dehumidifiers are manufactured based on more than 30 years of research and development. Have been used in space suit specific cell production and become the most advanced satellite transmission tower supporting equipment.
  2. Peritek dehumidifiers with R-DD optimal design, compared with the general dehumidifier, can save energy more than 35%, and above 10% with heat exchanger dehumidifiers.
  3. Dehumidification ability of Peritek dehumidifiers is great. Under normal use, after closing down for 10 hours, system can restart and reach the technical target in 30 to 60 minutes.
  4. We can provide users domestic initiative remote communication interface according to your requirements, and the remote computer operation and management system networking, superior to realize remote service.
  5. Peritek dehumidifiers adopt steel structure with plastic-sprayed surface (Peritek self-owned patent, patent number: ZL 2008 0163177.3 2).





Typical Application Fields:



1.  Warehouse, Library and Archives:

In low humidity environment, the goods, books and files will not be damaged for a long time.

2.  Pharmaceutical Industry:

Widely used in processes need to control humidity in parametrical industries, for example, soft gelatin capsule, fluidized bed, tablet press, coating machine, tumble dryer, tray dryer and so on.

3.  Electronics Industry, Lithium Battery

It is widely used for precision instrument manufacture such as electronic components, astronavigation component, lithium battery etc which needs strict control of moisture.

4.  Chemical Fiber Industry:

Used with chiller, it can make the dew point below -40℃ to meet the drying environment for PET chip in the chemical fibre factory.

5.  Food Processing Industry:

Used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube

sugar store,flour processing, fermentation, drying and other processes.

6.  Space and Aviation:

7. Glass Lamination

8. Ship Coating

9. Bridge Anticorrosion

10. Rubber Tire

11. Nuclear power plants

12. Printing







Modular Desiccant Dehumidifier For Plastic Bottles Blow Molding 0





Work Principle:



The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel.
The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of
the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air
comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet
the need of dry place or gas production process.
