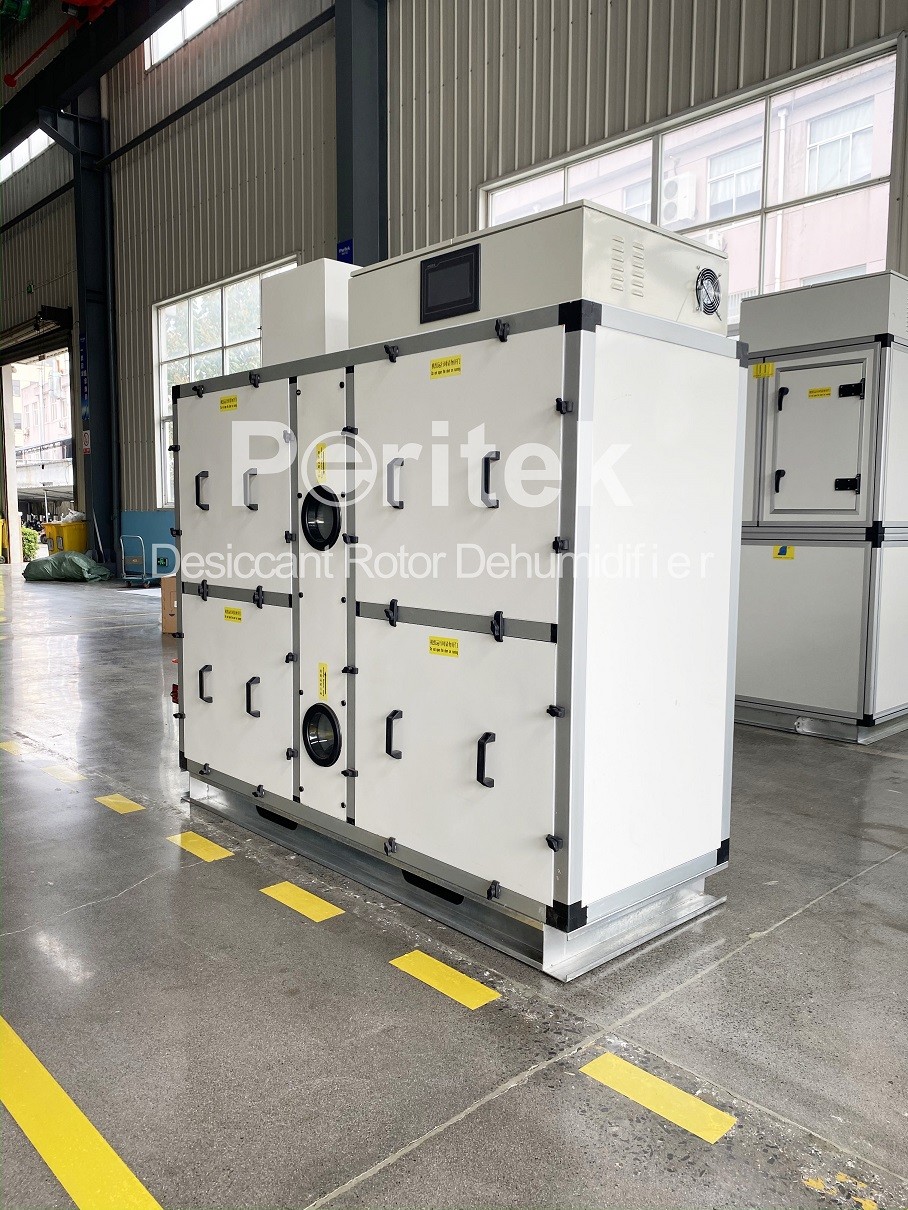

1000CMH 1500kg/H 50000M3/H Desiccant Wheel Dehumidifier

Basic Information
Place of Origin: Hangzhou, Zhejiang, China
Brand Name: Peritek
Certification: CE ,ISO
Model Number: ZHX-D-1000L.S
Minimum Order Quantity: 1 SET
Price: 0
Packaging Details: Wooden cases,a normal export package. Details: wrapping film,fixed,waterproof plastic bag and wooden cases.
Delivery Time: Within 35 days after receipt of down payment.
Payment Terms: L/C,T/T
Supply Ability: 100 Set/Sets per Month
Voltage: 220V/380V/50HZ Condition: New
Warranty: 1 Year Application: Industrial Air Drying,Electronic Device
After-sales Service Provided: Engineers Available To Service Machinery Overseas Color: Customized
Type: Desiccant Wheel Dehumidifier Function: Dehumidification,Absorb Moisture
Dehumidifying Capacity: 3~1500kg/h Air Volume: 3000-50000 M3/h
Packing: Wooden Box Process Air Flow: 70-11000m3/h
High Light:

1000CMH desiccant wheel dehumidifier

,

50000M3/h desiccant wheel dehumidifier

,

1500kg/h desiccant wheel dehumidifier

-50℃ Dew Point,Glove Boxes Industries Application Dehumidifier,1000CMH Desiccant Wheel Dehumidifier,



Quick Detail:



1. Process airflow 9000CMH

2. High moisture removal.

3. Suitable for low temperature and RH process.

4. Could be usded together with air conditioner.

5. Start with domestic first rotor dehumidifier,

6. With 30 years professional theoretical and practical experience in dehumidifier field

7. Draw up the  national military standard and industry standard of dehumidification equipment

8. Silica gel desiccant wheel.



How does a desiccant wheel dehumidifier work?

A desiccant wheel with a grid of small air passages, similar to a large bundle of coffee straws, is impregnated with silica gel (the same silica that is used in the packets that keep shoes dry). The desiccant wheel rotates slowly through the different airflow zones of the desiccant, as it works to remove moisture.



When should you use a desiccant dehumidifier?

When you're faced with drying in cool temperatures or drying dense materials like hardwoods, brick, or plaster-and-lath construction, nothing beats the efficiency and power of desiccant dehumidifiers.



Description:



The Dehumidifier is specialized for normal temperature and low humidity process environment. Its major characteristics are as follow:

1. Main components: pre-filter, desiccant rotor, process fan, electric controller and cabinet.

2. The cabinet is made of aluminum alloy, and double insulation panel structure with high density polyurethane insulation material inside, strong, compact, anti-corrosion, and it is anti-“cold bridge” which can help avoid condensating.

3. The dehumidifier select PROFLUTE silica gel desiccant wheel from Sweden.

4. Select centrifugal fan, its impeller and vent was plated with anti-corrosion coating, it’s strong and anti-corrosion.

5. G4 rough effect air filters to assure air purity.

6. Use text display, temperature and humidity probe to control temperature and humidity. It is convenient to operate.





Main Parameters of ZHX Series Dehumidifier



Main Parameters / Model ZHX-100 ZHX-200 ZHX-300 ZHX-500 ZHX-800 ZHX-1000 ZHX-1500
Process Air Airflow m³/h 100 200 300 500 800 1000 1500
Fan Power kW 0.55 0.55 0.75 1.10 1.10 1.10 2.2
Regeneration Fan Power kW 0.18 0.18 0.18 0.25 0.37 0.37 0.75
Regeneration Electrical Heating Power kW 1.8 3.6 5.4 8.4 13.8 16.2 24.0
Attemperation Electrical Heating Power kW 0.6 0.6 1.2 1.8 3.0 3.6 5.4
Drive Motor Power kW 0.03 0.50 0.50 0.80 1.00 1.20 1.50
Installed Power kW 3.16 5.43 8.03 12.35 19.27 22.47 33.85
Supporting System Refrigerating Capacity kW 4.8 9.7 14.5 24.2 38.7 48.3 72.5
Overall Dimensions Length mm 1800 2000 2000 2200 2500 2500 2700
Width mm 910 1010 1010 1200 1350 1350 1500
Height mm 1400 1535 1535 1750 1900 1900 2100
Weight kg 200 250 300 400 500 550 600



Note:

Depending on the system configuration can make the dew point temperature glove box of ≤-40 ~-60 ℃



Competitive Advantage:



1. Peritek dehumidifiers are manufactured based on more than 30 years of research and development. Have been used in space suit specific cell production and become the most advanced satellite transmission tower supporting equipment.

2. Peritek dehumidifiers with R-DD optimal design, compared with the general dehumidifier, can save energy more than 35%, and above 10% with heat exchanger dehumidifiers.

3. Dehumidification ability of Peritek dehumidifiers is great. Under normal use, after closing down for 10 hours, system can restart and reach the technical target in 30 to 60 minutes.

4. We can provide users domestic initiative remote communication interface according to your requirements, and the remote computer operation and management system networking, superior to realize remote service.

5. Peritek dehumidifiers adopt steel structure with plastic-sprayed surface (Peritek self-owned patent, patent number: ZL 2008 0163177.3 2).





Work Principle:



The core component of rotary dehumidifier is the 8-16 hour spin in turn densely cellular Conde desiccant wheel. The desiccant wheel on both sides by high-performance silicon fluorine rubber seals along the entire surface of the radial will be divided into 270 ° of the treatment area and 90 ° of the regeneration zone, when the moist air comes into the processing area, the air moisture in the desiccant wheel was adsorbed into dry air, dry air meet the need of dry place or gas production process.



1000CMH 1500kg/H 50000M3/H Desiccant Wheel Dehumidifier 0




Typical Application Fields:



1. Warehouse, Library and Archives:

In low humidity environment, the goods, books and files will not be damaged for a long time.

2. Pharmaceutical Industry:

Widely used in processes need to control humidity in parametrical industries, for example, soft gelatin capsule, fluidized bed, tablet press, coating machine, tumble dryer, tray dryer and so on.

3. Electronics Industry, Lithium Battery

It is widely used for precision instrument manufacture such as electronic components, astronavigation component, lithium battery etc which needs strict control of moisture.

4. Chemical Fiber Industry:

Used with chiller, it can make the dew point below -40℃ to meet the drying environment for PET chip in the chemical fibre factory.

5. Food Processing Industry:

Used in dehydrated vegetables, chocolate, candy, chewing gum manufacturing, cube

sugar store,flour processing, fermentation, drying and other processes.

6. Space and Aviation:

7. Glass Lamination

8. Ship Coating

9. Bridge Anticorrosion

10. Rubber Tire

11. Nuclear power plants

12. Printing







Packaging & Shipping:

1000CMH 1500kg/H 50000M3/H Desiccant Wheel Dehumidifier 1
